Floor Insulation & Soundproofing

The best way to enhance your home’s energy efficiency and cost-effectiveness is by ensuring that your floors are thoroughly insulated. This is especially crucial for older homes with suspended timber floors, which are prone to rotting and moisture damage due to poor or inadequate insulation.

What Are Suspended Timber Floors?

Suspended timber floors are a construction method designed to enhance the durability and longevity of wooden floors. Unlike traditional flooring laid directly on the ground, suspended timber floors are elevated above the soil, creating a ventilated void beneath. This design serves several key purposes:

• Prevention of Moisture Damage: The raised structure protects the floorboards from direct contact with the ground, significantly reducing the risk of rot and dampness.
• Minimisation of Condensation: The ventilated space helps manage humidity levels, thereby lowering the likelihood of condensation forming on the floorboards.
• Protection from Structural Damage: By keeping the floorboards elevated, this design minimises the potential for water-related damage.

However, while suspended timber floors offer these advantages, they can also present challenges. The elevated construction often results in draughty conditions, causing a significant loss of heated air during winter months—sometimes more than that experienced by walls. As a result, adding insulation becomes essential to maintain comfort and energy efficiency in your home.

Why Soundproofing Your Floor?

Soundproofing your floors is an effective solution for addressing both airborne and impact noise. It can be applied to new floors that have yet to be installed—this is often the easier and more efficient option—but it can also be done on existing floors. If you're considering soundproofing an existing floor, it's essential to work with experienced professionals, like those in our company, to achieve optimal results. However, be aware that this process is more complex and may require additional time, energy, and financial investment. The steps typically include:

1. Lifting the existing floorboards
2. Installing soundproofing insulation material
3. Reinstalling the floorboards

When it comes to soundproofing underlays, there are various types to choose from, each suited to different noise issues, flooring types, and budget considerations. To ensure you select the most appropriate soundproofing underlay for your project, consult with a reliable and knowledgeable professional flooring team before making a purchase.

Why Choose Underfloor Insulation?

Underfloor insulation is crucial for keeping your home warm and energy-efficient. Since suspended hardwood floors can be quite draughty, a significant amount of heated air escapes through the floor. Over time, gaps can develop between the floorboards, exacerbating energy loss.

Key benefits of underfloor insulation include:

• Reduced heat loss: It helps your home retain heat more effectively, ensuring a cosier environment in winter.
• Quicker heating: Your home will warm up faster, resulting in more comfortable living conditions.
• Lower heating bills: By minimising heat loss, you can save on your energy costs.
• Moisture barrier: High-quality underfloor insulation has hygroscopic properties, allowing it to absorb moisture vapour from the subfloor or joists and prevent moisture damage to the floorboards.

While liners are often used beneath suspended floors to minimise draughts, they typically fall short of providing a complete solution. Since the edges of the floor are usually not taped, this makes the floor less airtight, compromising overall energy efficiency. Installing high-quality underfloor insulation is the best way to ensure a warm, comfortable, and cost-effective living space.

Useful Terms to Remember

When reading about or shopping for underfloor insulation, understanding these key terms will help you make the best choice for your project:

Hygroscopic Insulation

This specialised insulation is engineered to absorb moisture and water vapour from indoor air as humidity levels rise. It gradually releases the captured water vapour at a controlled pace when humidity levels decrease, ensuring a harmonious and comfortable indoor environment.

Hydrophobic Insulation

A game-changing solution for moisture resistance, hydrophobic insulation repels water, keeping your floors dry and protected. This innovative material helps prevent moisture-related issues such as mould growth and structural damage.

Vapour/Moisture Barrier

This robust barrier is designed to shield your floorboards from moisture damage, preventing moisture infiltration and preserving the integrity and longevity of your floors.

Moisture/Vapour Control Layer

This layer allows controlled amounts of moisture to pass through, helping maintain a balanced indoor environment.

Wind Wash

This refers to the effect of draughts of air passing through insulation, which can negate its intended benefits. For example, when ventilation in the subfloor area draws heat out due to loose or poorly installed insulation, it results in heat loss.

How to Add Insulation to a Suspended Floor?

The best time to install an insulation layer is before laying the floorboards, as this simplifies the process and saves time and money. However, if your floor is already installed and you're looking to improve its energy efficiency, it is still possible to add insulation. Here’s how:

1. Lift the Floorboards
   Begin by carefully removing the existing floorboards. This will allow you access to the space between the floor joists.

2. Inspect the Joists
   Before installing insulation, ensure that the joists are in good condition—free from rot or dampness. If any issues are detected, they must be addressed before proceeding.

3. Install the Insulation
   Place the insulation material between the floor joists. This step is crucial for maximising energy efficiency and minimising heat loss.

4. Replace the Floorboards
   Once the insulation is in place, reattach the floorboards. Ensure they are securely fixed to prevent any movement or noise.

5. Sanding and Refinishing
   To achieve a polished look, perform a quick sanding and refinishing of the floorboards after installation. This will enhance the overall appearance of your floor.

Consult Professionals

Make sure to consult with flooring specialists to discuss the best type of insulation for your specific project. They can provide valuable recommendations tailored to your home's needs. By following these steps, you will not only improve the insulation of your suspended floor but also enhance its visual appeal and overall comfort.

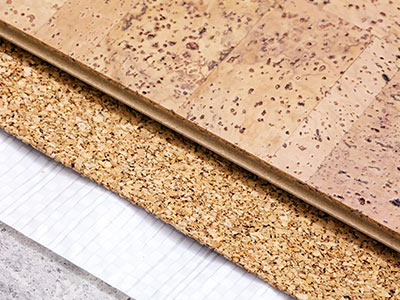

Different Types of Soundproofing Insulation

Soundproofing your floor can be effectively achieved using various types of acoustic underlayment and materials specifically designed to reduce noise. The effectiveness of soundproofing depends not only on the material used but also on its weight and density. Here are some common materials utilised for underfloor soundproofing insulation:

• Cork: Natural and eco-friendly, cork provides excellent sound absorption and thermal insulation.
• Plywood: Offers structural support while contributing to sound dampening.
• Vinyl: Known as mass-loaded vinyl, this dense material effectively blocks noise.
• Rubber: Highly effective at absorbing impact noise and providing cushioning underfoot.
• Felt: A dense material that absorbs sound and reduces echo.
• Foam: Lightweight and easy to install, foam can be effective for soundproofing but may vary in quality.

Main Groups of Soundproofing Materials

When considering soundproofing options for your floor, you can choose from several categories:

1. Acoustic Underlayment
   The most popular choice, this special layer is laid over the subfloor and beneath the floorboards to absorb sound.

2. Sound-Deadened Vinyl
   Also known as mass-loaded vinyl, this heavy sheet blocks noise effectively and is suitable for various flooring types.

3. Sound-Absorbing Floor Insulation
   This type of insulation is placed between the joists beneath the subfloor to minimise sound transmission.

4. Acoustic Floor Tiles
   Designed to reduce echo and reverberation, these tiles are ideal for hard-surface floors.

5. Sound-Absorbing Carpet Padding
   While this is the most affordable option, its effectiveness in reducing noise is limited. Remember, you often get what you pay for in terms of quality.

Get Professional Advice

If you would like to learn more about underfloor insulation options or discuss your specific project, don’t hesitate to contact our flooring specialists. We are here to help you choose the best solutions for your needs.

---
